Radiation Detection
H3D Isotope Image Compton Camera The design of compton camera is based on a CZT (Cd-Zn-Te) semiconductor radiation detector similar performance as HPGe detector but operated at room temperature with high sensitivity and excellent resolution. This advance technology allows the ionizing electron and Compton scatter transfer to images directly.

Application

  • Nuclear industry
  • Homeland security
  • CBRNE defense
  • Medical study

Specification

  • Model：H3D
  • Dimensions: 9.6 in x 3.5 in x 7.25 in
  • Weight:7.8 lbs
  • Battery Life:>6 hours at 23°C (73°F)
  • Power Supply:100-240 V, 47-63 Hz
  • Ingress Protection:IP65
  • Resolution:≦1.1% FWHM at 662 keV
  • Range:50 keVto 3 MeV (spectroscopy) , 250 keVto 3 MeV (imaging)
  • Crystal Volume:>19 cm3CZT
  • Isotope Library:3573 ENDF & user defined
  • Startup Time:2 min at 23°C (73°F)
  • Display:7” 1280x800 HD tablet
  • Communication: Wifi or Bluetooth, wired

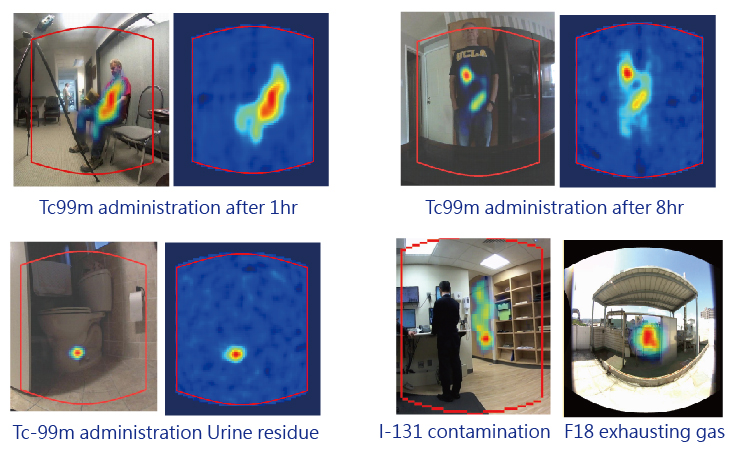

  • Views:Spectrum, gamma & optical image
  • Data Storage:USB (16 GB)
  • Build in infrared ray distance meter
  • Unit display: dose rate Gy/hr & Activity Sv
