Medical equipment that is used in the MRI room, such as infusion pumps, contrast injectors, patient monitors, anesthesia machines and others may malfunction and potentially injure the patient if not kept outside of a specific magnetic field strength. In addition, MR Conditional equipment can degrade the image quality of a scan if brought too close to the MRI magnet. With GaussAlert™, the possibility of equipment malfunction and image degradation is dramatically reduced.
ADVANCED TECHNOLOGY

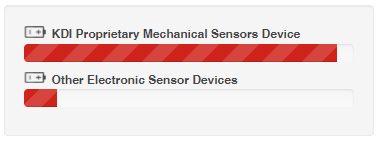

Worldwide Patented Sensor Technology assures long battery life. The Sensor is 100% mechanical thus the battery power is only used to produce acoustic alarm.No need to charge the device. No need to replace the battery for at least 5 years.
“The normal or safe operation of many medical devices designed for use in the MR environment may be disrupted by exposure to conditions exceeding the device’s conditional rating threshold. It is advisable for MR facilities to identify the maximum conditional rating for static field and spatial gradient exposure for each MR Conditional device that may be brought into Zone IV.”
ACR Guidance Document for Safe MR Practices: 2007, Page 23
UNIQUE FEATURES
CONSTANTLY MONITORSthe invisible magnetic field near the MRI magnet.
MR CONDITIONAL EQUIPMENT
kept outside MRI exclusion zone with the help of GaussAlert™
ACOUSTIC ALARM
is activated if the equipment is moved too close to the MRI magnet.
INTERNALLY-POWERED
with no need to replace the battery for at least 5 years
PERIODIC MAINTENANCE
is not required.
TECHNICAL SPECIFICATIONS
GaussAlert™ is available in three factory preset gauss thresholds: 10, 30 and 100 gauss, based on the equipment manufacturer’s specificationsGaussAlert™ easily and quickly attaches to any piece of equipment that goes inside the magnet room.
GaussAlert™ compliments the function of our FerrAlert™ HALO detectors by monitoring equipment that has passed through the portal but still must be monitored inside the magnet room.
Width: 3.5" (8.8 cm)
Hight: 6.3" (16 cm)
Depth: 2.4" (6 cm)
Weight: 1lb (455 gr)

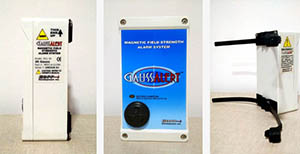

GaussAlert™Easily attaches to any piece of equipment

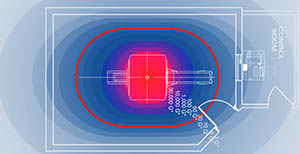

Magnetic Field in MRI RoomOnly a few feet separate 30 G and 30000 G line

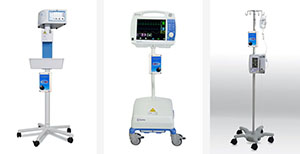

GaussAlert™Attached to MR conditional equipment
