MRI門框偵檢器
FerrAlert™ SOLO FerrAlert™ SOLO is Installed in the controlled pre-screening zone. It is the highest sensitivity, full-body patient and personnel scanner available to MRI providers. FerrAlert™ detectors are recognized to be the most accurate ferromagnetic detectors for MRI due to their exclusive location-specificity feature. FerrAlert™ detectors have been independently tested to be the most sensitive in real-world MRI environments due to its unique and patented sensor technology.

ADVANCED TECHNOLOGY

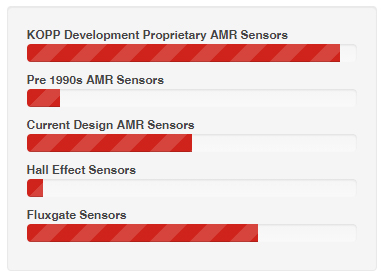

Proprietary AMR Sensor Technology used in FerrAlert™ detectors proven to be most sensitive in "Real World" MRI environment

Raw sensitivity is only meaningful if you are in the ocean looking for an isolated ferromagnetic object ( e.g. submarine). In such environment there are few other ferromagnetic, moving objects to interfere with sensing.
In the real environment of a hospital, where many ferromagnetic objects are moving all the time, you must be able to discriminate between "real" threats and objects that are ferromagnetic but not a threat.

FLUXGATE SENSOR DETECTION ZONE


KOPP PROPRIETARY AMR SENSOR DETECTION ZONE


UNIQUE FEATURES

PINPOINTS LOCATION
of the ferromagnetic threat allowing the Technologist to quickly and easily identify and remove it. NO invasive pat-down or hand-held detectors required.

INTELLIGENT VISUAL WARNING
is triggered by approaching ferrous objects.

SELF-SCREENING
or supervised screening is consistent, unambiguous and simple.

NO-TOUCH ACTIVATION
safeguards against dangerous cross-contamination.

PATENTED TECHNOLOGY
suppresses false alarms and warnings while providing the highest sensitivity to ferromagnetic threats. The use of 12 sensors ensures uniform sensitivity and detection reliability from head to toe.

REDUCES ALARM FATIGUE
by not producing acoustic alarm unles the presence of human body is detected (body heat sensor)

ADDITIONAL FEATURES

Continuous Magnetic Disturbance Monitoring provides instant feedback via integrated and highly visible bar graphs

Safe Passive Detection NO electromagnetic radiation, RF radiation, or magnetic field

Adjustable Sensitivity and Audio Alarm Levels

Conforms to ALL Applicable Recommendations and Standards including FDA, ACR AAMI, Joint Commission, FGI and VA

Comprehensive Self-Test Function for hospital periodic maintenance, as well as piece of mind

Integrates esasily into any established screening procedures. Elegant, small footprint installation

Inexpensive - affordable for all MRI facilities

FerrAlert™Approved Patient Transport Equipment will not trigger an alarm

TECHNICAL SPECIFICATIONS

Dimensions:
Height 86 ¼” (220 cm), Depth 2 ½” (6.5 cm), Width 2” (5 cm)

Complies with ES60601-1-8 International Standards for Medical Device Alarms
Complies with IEC 60601-1:2005 Medical Device Specification Requirements

Medical Power Supply:
100 to 240 VAC, 47 to 63 Hz, 42 Watts

Sensitivity:
Adjustable

Ambient Magnetic Disturbance Indicator:
Eight (8) blue bars

Sensitivity:
Adjustable

Audio Alarm:
Selectable, adjustable volume

Mounting:
Wall or free-standing with optional basel

Battery Operation:
Optional

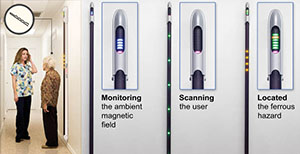

Detecting Hairpin on Patient
Showing precise location of ferrous object

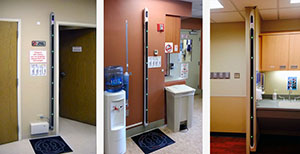

Small Footprint
Suits any established screening procedures

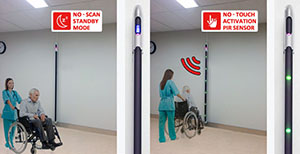

No-Touch Activation
Body heat sensor detects human presence
